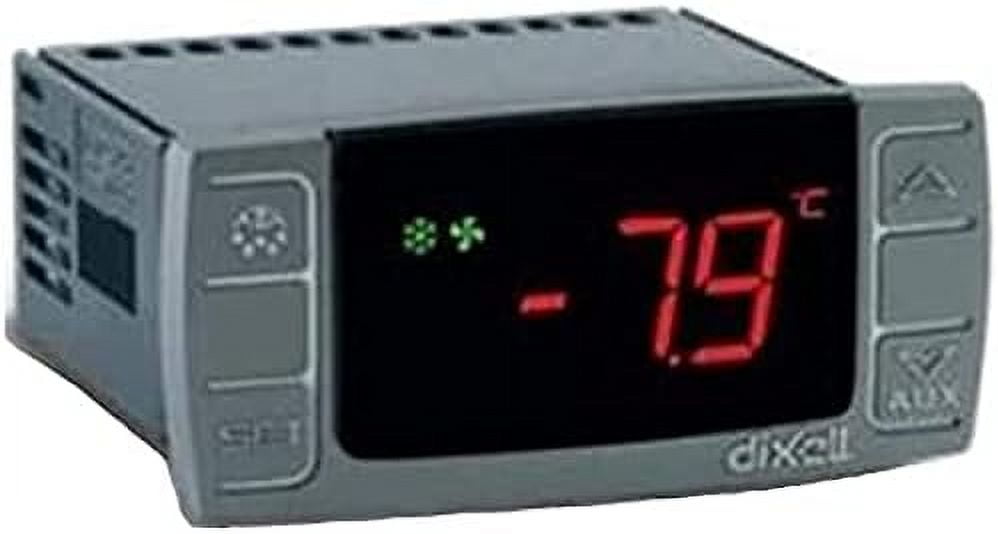

Dixell XR06CX-5N0C1 230V/50-60Hz Digital Thermostat Controller Compressor Defrost Fans Adjustable with 2 Pieces Temperature Probe Sensors for Refrigerating Freezers Units

Temperature Control: Hysteresis control (temperature difference adjustable); in the event of a sensor failure, the compressor is started and stopped at set intervals using “Cy/Cn”.<br>Defrost Management:<br>Mode: Electric heating (compressor off) or hot gas (compressor running).<br>Parameters: Defrost interval (id), maximum defrost time (Md), termination temperature (Sensor 2).<br>Fan Control: Interlocked with compressor/defrost; stops during defrost/delayed restart; configurable low-temperature fan shutdown.<br>Alarms and Protection: Sensor failure, high/low temperature alarms; relay overload protection; parameter retention during power loss (EEPROM).<br>Quick Programming: Supports HOTKEY one-click parameter copying; panel keys can be password-locked.<br>Translated with DeepL.com (free version)

• • Key Specifications (230V/50–60Hz)
  • Model: XR06CX-5N0C1 (Part No. R009003)
  • Power Supply: 230V AC ±10%, 50/60Hz; Power Consumption ≤3.5VA
  • Dimensions: Panel 71×29mm, Depth 60mm; Cutout 32×74mm
  • Weight: Approx. 200g; Protection Rating: IP54 (front panel)
  • Temperature Measurement Range: –40°C to +110°C (NTC probe)
  • Operating Environment: 0–60°C, relative humidity 20%–85% (non-condensing)
  • Storage Environment: –25°C to 60°C
  • Translated with DeepL.com (free version)
• Dixell XR06CX-5N0C1 Digital Thermostat Controller is a high performance and reliable solution for refrigerating and freezer units. This 230V/50 60Hz thermostat is designed to precisely control compressor defrost and fans with adjustable settings for optimal temperature management. The XR06CX 5N0C1 model comes equipped with 2 high quality temperature probe sensors ensuring accurate readings and consistent performance in various cooling applications.

  Key features of the Dixell XR06CX 5N0C1 Digital Thermostat include its user friendly interface with clear digital display for easy monitoring and adjustment. The adjustable defrost cycle and compressor delay functions help enhance energy efficiency while protecting your refrigeration system. With its durable construction and wide operating range this thermostat is ideal for commercial freezers display coolers and cold storage units.

  The XR06CX 5N0C1 thermostat offers multiple safety features including anti short cycle protection and alarms for temperature deviations ensuring your equipment runs smoothly and safely. Its compact design allows for easy installation in tight spaces while the included temperature probes provide flexibility for different mounting configurations.

  Upgrade your refrigeration system with the Dixell XR06CX 5N0C1 Digital Thermostat Controller and enjoy precise temperature control improved energy efficiency and reliable operation. Perfect for restaurants supermarkets and food storage facilities this thermostat is a must have for maintaining optimal cooling conditions. Order yours today and experience the difference in performance and durability.


• With its advanced technology and robust design the Dixell XR06CX 5N0C1 ensures long lasting performance making it a smart investment for any refrigeration setup. Whether you need to replace an old thermostat or install a new one this model delivers unmatched accuracy and convenience. Trust Dixell for professional grade temperature control solutions that meet the demands of commercial refrigeration.
• The XR06CX 5N0C1 is backed by Dixell’s reputation for quality and innovation providing peace of mind and superior functionality. Its easy to use settings and reliable probes make it a top choice for technicians and business owners alike. Don’t settle for less choose the Dixell XR06CX 5N0C1 Digital Thermostat for your cooling needs and enjoy consistent precise temperature management every day.
