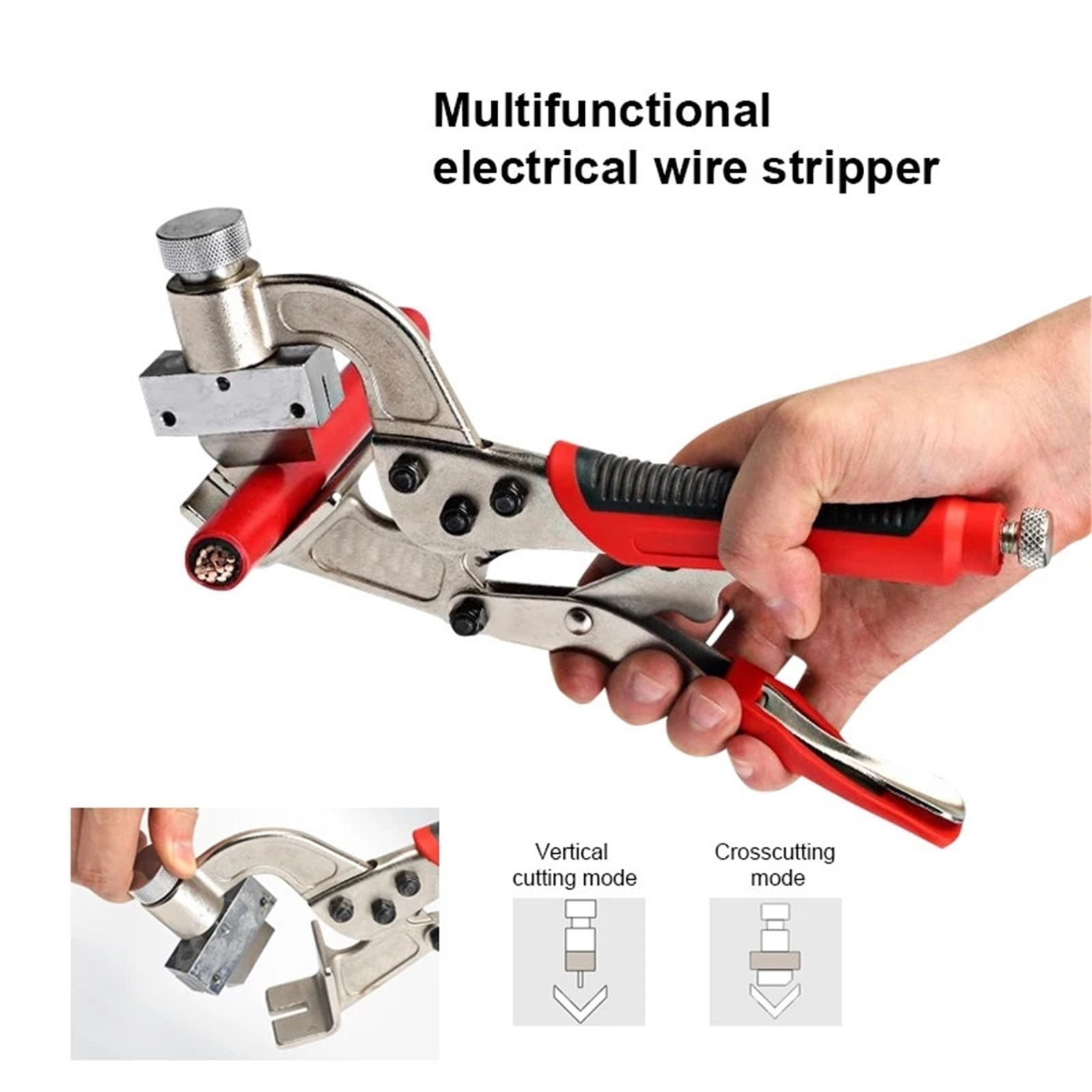

Multi-function electrician wire stripper BXQ-F-55 high voltage cable stripper insulation stripper ,Tool

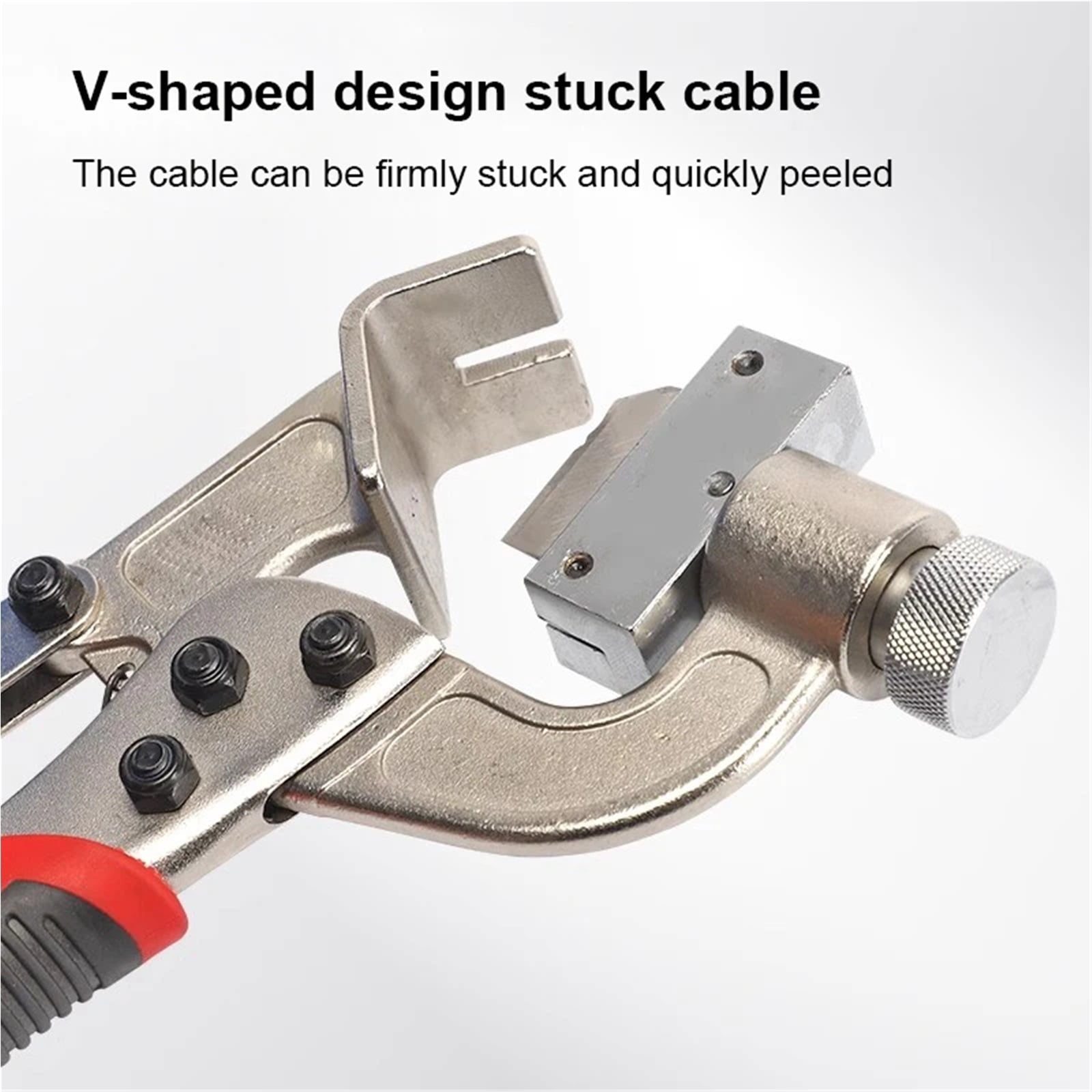

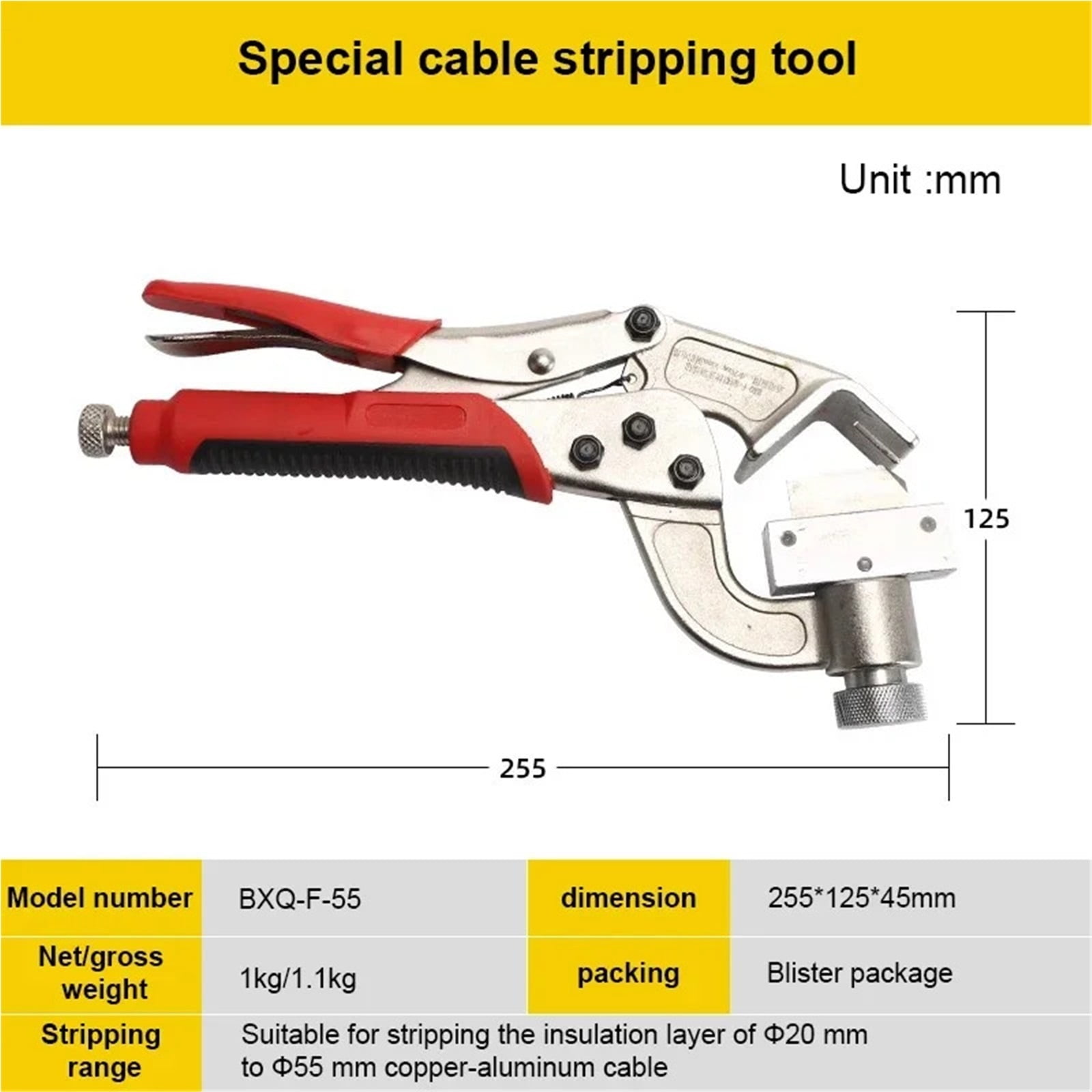

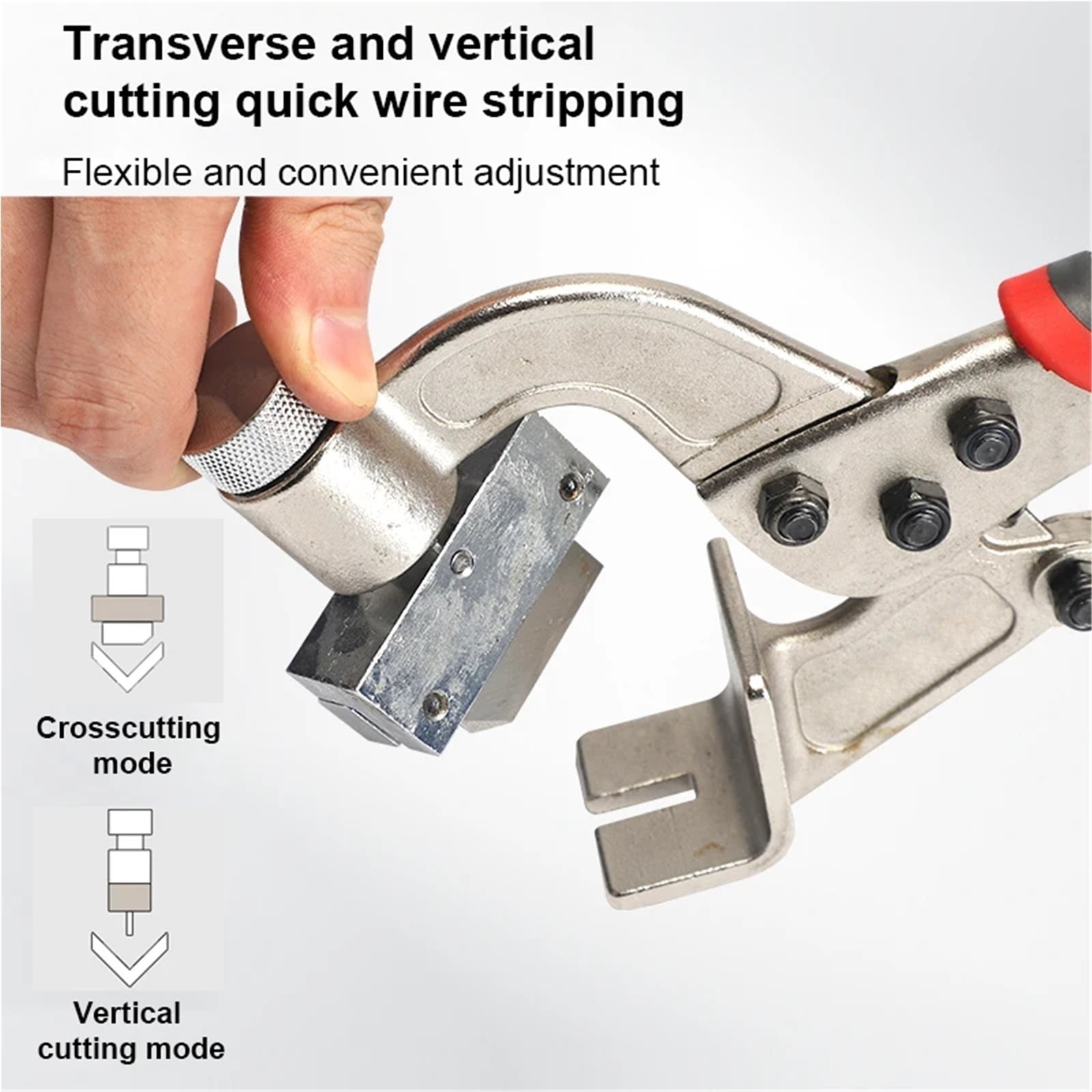

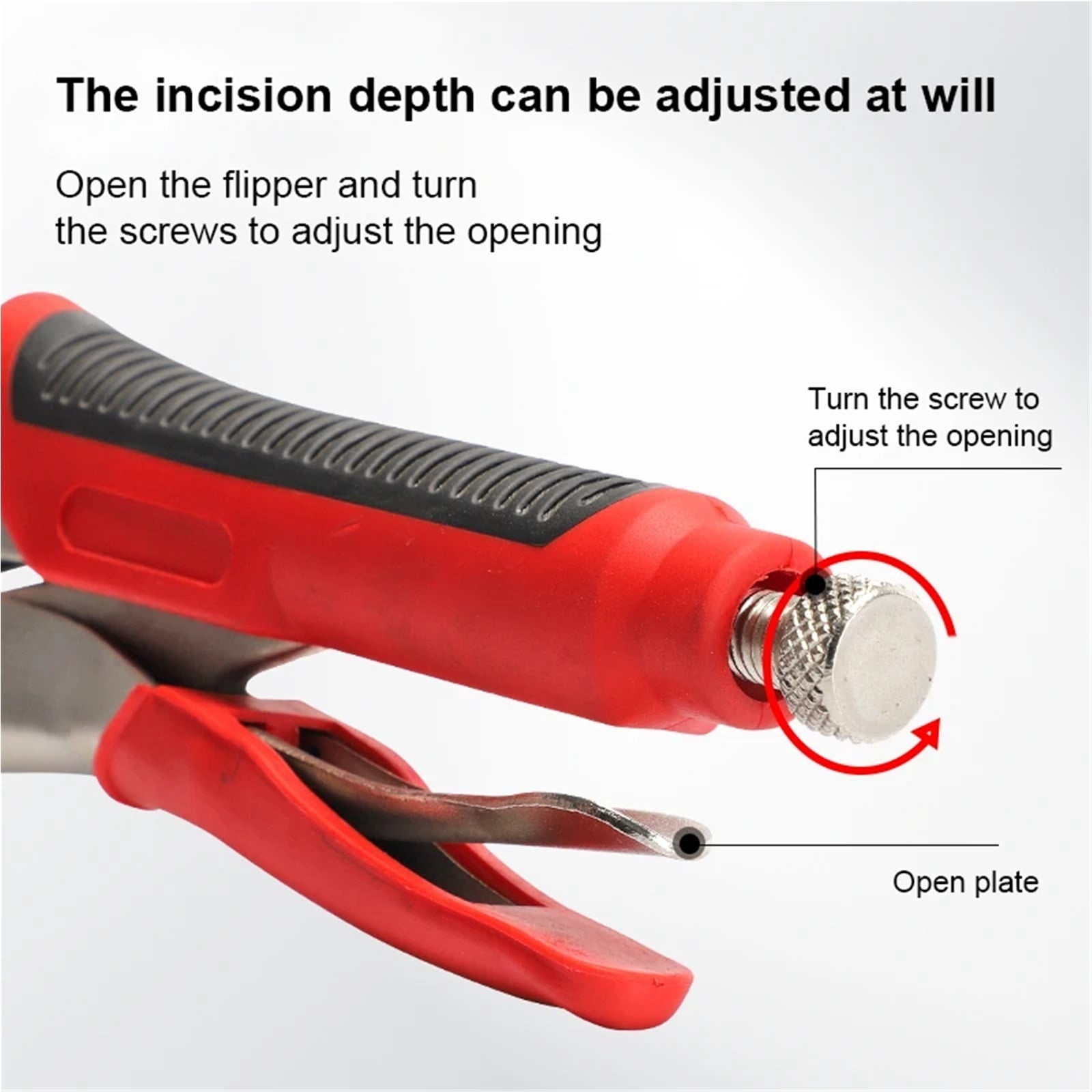

<p>Model: BXQ-F-55</p><p>Net weight/gross weight: 1kg/1.1kg</p><p>Stripping range: suitable for stripping the insulation layer of copper aluminum cables from 20mm to 55mm in size</p><p>Size: 255 * 125 * 45mm</p><p>Charging time:</p><p>Powerful design, fast wire stripping speed, flat cross-section, especially suitable for aerial operations;</p><p>It can be switched between horizontal and vertical cutting, and after adjustment, it can fix the memory cutting depth, making it convenient and fast without damaging the wire core;</p><p>The insulation layer of the cable can be peeled and cut in two directions, forming a 90 ° angle with flexible direction adjustment;</p><p>The blade is made of high-quality high carbon alloy steel, with high strength, sharpness, and durability, making it easy to replace;</p><p>Power Bureau Competition Designated Stripper</p><p>usage method:</p><p>1. First place the blade in the position shown in the diagram (blade A), grip the handle, and then place the cable on the V-shaped iron;</p><p>2. Adjust the adjustment screw: When the movable handle and fixed handle are tightly held, the blade is about 0.5mm away from the surface of the wire. After the adjustment is completed, lift the lifting plate and release the pliers;</p><p>3. Place the cable stripping position under the blade, press the cable tightly against the V-shaped iron, clamp the handle, rotate it back and forth around the cable (2360 °), release the handle, (if stripping the cable in the middle, cut a second knife according to the line range), press down on the top clamp shaft, rotate it 90 °, place the slice in the view position (blade B), clamp the handle, and cut the insulation layer radially, which can be operated in several cuts. Then, rotate the stripping pliers about 180 ° to cut radially, and then lift them open, Release the handle and pull down the insulation layer to complete the operation. twelve</p>

• Lightweight and Portable:At just 1kg, the BXQ-F-55 electrician wire stripper is easy to handle for aerial installations.
• Ergonomic Design:The stripper's horizontal/vertical switch and memory depth adjustment offer convenience and speed.
• High Carbon Alloy Blade:Equipped with a high-strength, sharp, high carbon alloy steel blade for easy replacements.

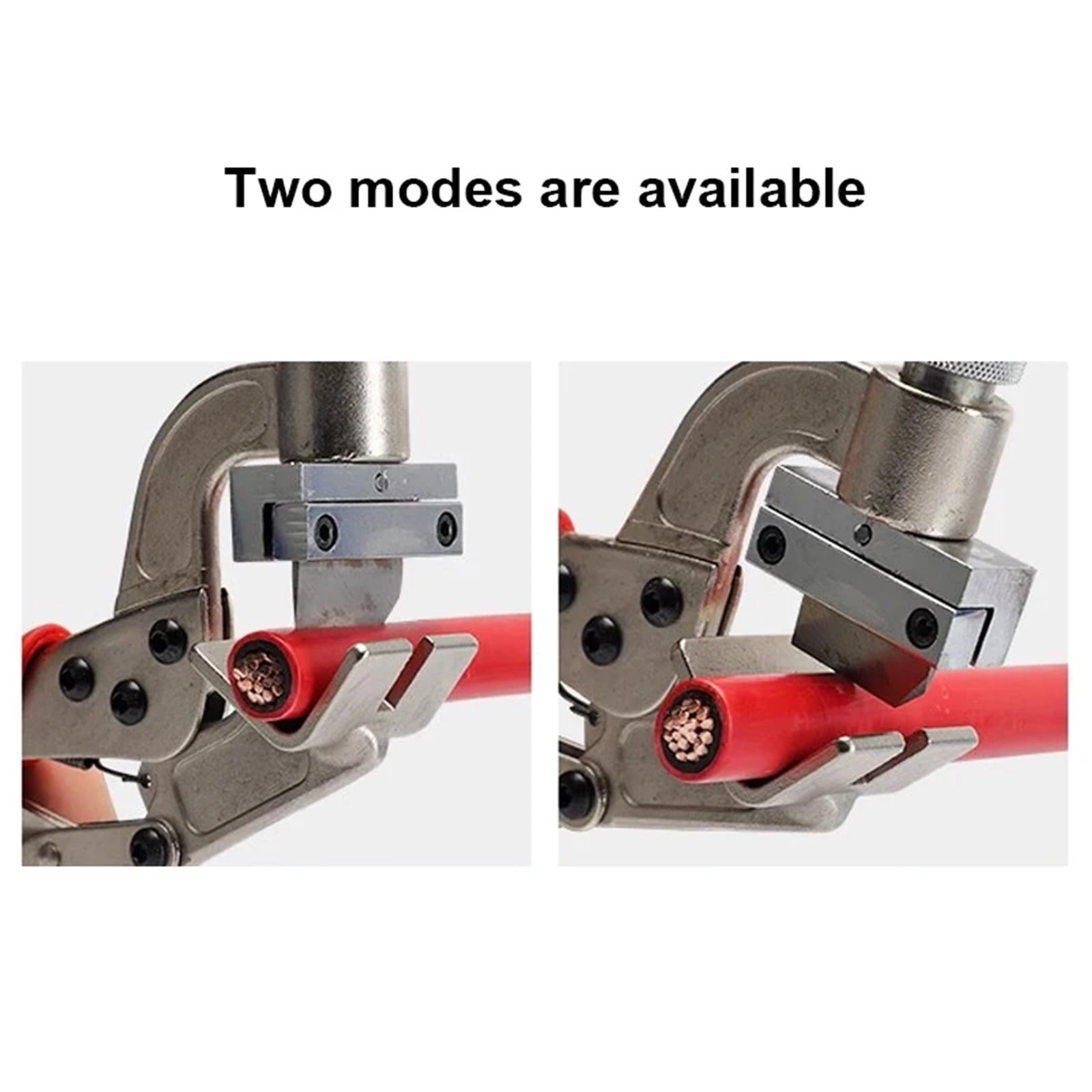

• Versatile Cutting Angles:Capable of 90° angle adjustments, this stripper cuts insulation in two directions for flexible use.
• Quickwire Flat Cable Stripper|High-Speed Wire Stripping:Powerful design ensures quickwire flat cable stripping for efficient high-voltage operations.
